How do you flush or clear a clogged refrigerator capillary tube?

Clearing a clogged refrigerator capillary tube requires separating it from the system, isolating the obstruction, and forcing it out using high-pressure hydraulic fluid or solvent gas.

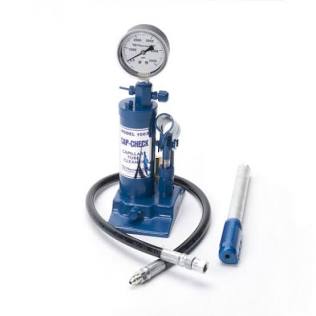

Hydraulic capillary tube unblocker tool. Source: Acrtools by Soldatos

Prerequisites & Safety

• Recover Refrigerant: Safely recover the remaining refrigerant according to EPA regulations before cutting any lines.
• Remove Filter Drier: Cut out and discard the old filter drier. Never attempt to flush through an existing drier.

1

Isolate the Capillary Tube

Disconnect from drier and evaporator inlet

Cut the capillary tube off at the filter drier outlet. Unbraze or cut the capillary connection at the evaporator inlet so you are flushing through a standalone line rather than pushing debris into the evaporator coils.

2

Attach the Unblocking / Flushing Tool

Connect to high-pressure flushing equipment

• Method A (Hydraulic Pump Tool – Preferred): Fill the cylinder of a hand-operated hydraulic capillary unblocker with compressor oil (or solvent). Swage/seal the inlet end of the capillary tube into the tool’s coupler.
• Method B (Flush Kit & Dry Nitrogen): Connect an HVAC flush canister (filled with solvent such as Rx11-Flush) to the capillary tube inlet using a compression fitting or line tap. Connect a dry nitrogen tank with a high-pressure regulator to the canister inlet.

3

Apply Pressure to Dislodge the Blockage

Push up to 3,000–5,000 PSI depending on tool type

• Hydraulic: Pump the handle to build pressure (1,000 to 5,000 PSI). The hydraulic oil pressure forces hard paraffin/wax plugs out the open end.
• Nitrogen/Solvent: Regulate nitrogen pressure gradually up to 250–400 PSI to force the solvent through the line.
• Tip: Direct a heat gun along the capillary line while under pressure to melt hardened wax or sludge blocks.

4

Purge and Dry the Line

Eliminate all remaining solvent and oil residue

Once the restriction pops open and liquid flows freely, purge the capillary tube with dry nitrogen alone at 100–150 PSI for 2 to 3 minutes to remove all traces of liquid solvent or excess hydraulic oil.

5

Reassemble with a New Filter Drier

Never reuse the old filter drier

Braze a new liquid line filter drier onto the condenser outlet. Braze the cleaned capillary tube into the new drier, reattach to the evaporator, triple-evacuate the system down to below 500 microns, and recharge by weight.

Pro-Tip: When to Replace vs. Flush

If a capillary tube is blocked by burnt copper particles or metal shavings from a mechanical compressor failure, flushing rarely succeeds. In those cases, replacing the capillary tube with an identical inner-diameter and length copper line (or replacing the heat exchanger assembly) is the only reliable permanent fix.
