How do I tell if my refrigerator condenser fan motor is 120V AC or low-voltage DC, and how does testing differ?
Identifying whether your condenser fan motor is a standard 120V AC motor or a low-voltage DC motor (common on modern inverter/electronic control units) is critical, as applying the wrong testing procedure or voltage range will lead to incorrect diagnostics or damage to internal electronics.

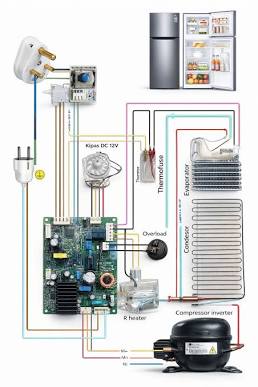

DC fans connect directly to PCB control boards. Source: Facebook
1. How to Identify AC vs. DC Fan Motors
| Identification Method | 120V AC Condenser Fan | Low-Voltage DC Condenser Fan |
|---|---|---|
| Wiring & Pin Count | 2 Wires (Line & Neutral, plus optional Ground). Uses spade terminals or a simple 2-pin connector. | 3 to 4 Wires (VDC Power, Ground, Feedback/Tachometer, and Speed Control signal). |
| Motor Label Specs | Stamped with 115V AC / 120V AC, 60Hz, and AC current rating (e.g., 0.2A – 0.5A). | Stamped with 9V DC, 12V DC, or 13.5V DC and wattage/DC current rating. |
| Control Architecture | Driven directly via electromechanical defrost timer, cold control thermostat, or main board relay. | Driven directly by microprocessors on an electronic main control board. |
2. How Testing Differs Between AC and DC Motors
Testing a 120V AC Fan Motor
AC motors are simple inductive coil windings. Resistance and voltage testing are straightforward:
- Resistance Test (Power OFF):
- Disconnect the 2-pin harness.
- Measure resistance across the two motor pins using the 200Ω or 2kΩ scale.
- Expected Result: A healthy coil reads roughly 50 Ω to 500 Ω. An infinite (∞ or OL) reading means an open winding; 0Ω indicates a shorted winding.
- Voltage Supply Test (Power ON):
- Set multimeter to AC Volts (V∼) on the 200V or 600V range.
- Probe the harness connector while the compressor is running.
- Expected Result: Should read 110V AC to 120V AC.
Testing a Low-Voltage DC Fan Motor
DC fan motors contain internal solid-state driver electronics (brushless DC / BLDC), meaning static resistance tests across terminals are unreliable and can yield misleading readings.
- Supply Voltage Test (Power ON):
- Set multimeter to DC Volts (V…) on the 20V DC range.
- Leave the harness plugged into the motor (back-probe the connector pins with thin meter leads or paperclips).
- Measure between VDC Supply (+) (typically Red) and Ground (-) (typically Black or Blue).
- Expected Result: Should match the motor label rating (+12V DC to +13.5V DC when the board commands the fan to run).
- Speed / Feedback Signal Tests (Power ON):
- Speed Command Pin (Yellow or White): Measures variable DC voltage (usually 2V to 5V DC) sent from the board to vary fan speed.
- Feedback Pin (Blue or White): Sends pulse signals back to the board to confirm rotation. When spinning by hand or running, voltage will fluctuate between 0V and 5V DC.
Diagnostic Rule of Thumb for DC Fans: If the control board is delivering correct DC power (+12V DC) and speed signal to the motor connector, but the fan motor refuses to spin or turns stiffly, the motor’s internal PCB or bearings have failed and the motor assembly must be replaced.
