How do I properly braze and repair copper tubing leaks in a refrigeration system?

Brazing refrigeration lines requires higher temperatures (1,100∘F to 1,500∘F / 600∘C to 800∘C) than standard plumbing soldering. This creates a high-strength, vibration-resistant joint capable of withstanding operating pressures above 400 PSI.

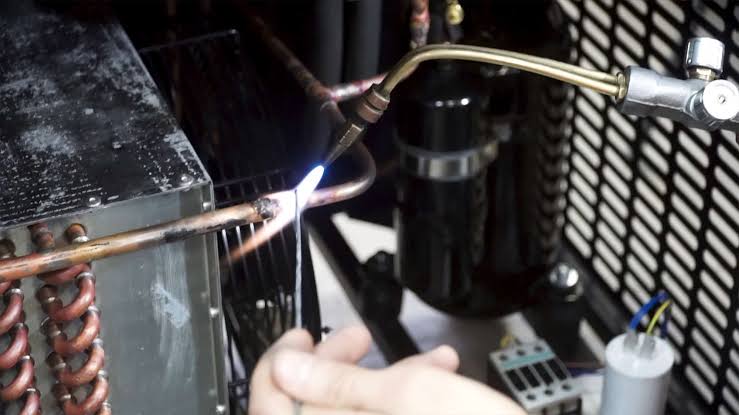

Brazing a copper joint using an oxy-acetylene torch and silver alloy rod. Source: Watkins Heating & Cooling

Essential Materials & Tools

• Torch Setup: Oxy-acetylene torch (preferred for rapid, localized heating) or MAP-Pro torch.
• Filler Rod:
  • Copper-to-Copper: Sil-Fos rod (5% to 15% silver alloy). Self-fluxing; no external flux required.
  • Copper-to-Brass / Steel: High-silver rod (35% to 45% silver) with stay-silv black flux.
• Purge Rig: Dry Nitrogen bottle with a low-pressure regulator (1 to 3 SCFH flow).
• Prep Tools: Abrasive pad (Scotch-Brite or emery cloth), tubing cutter, and inner/outer reamer.

Step-by-Step Brazing Repair Procedure

1

Recover Refrigerant and Isolate the System

Failing to recover refrigerant can lead to toxic phosgene gas exposure under high heat

Safely recover all remaining refrigerant into an approved recovery cylinder using a certified recovery machine. Ensure the system is completely depressurized and open to atmospheric pressure before applying a torch flame.

2

Clean and Ream Tubing Ends

Oxide scale and grease prevent the silver alloy from bonding

Cut out the damaged copper tubing section using a tubing cutter. Ream the inside diameter to remove burrs that restrict gas flow. Scour the outer surface of the pipe and the inner socket of the fitting using an abrasive pad until the copper shines bright.

3

Establish a Nitrogen Purge

Crucial Step: Prevents black copper oxide flaking inside the sealed system

Connect dry nitrogen to the service port and establish a slow, continuous trickle flow (1 to 3 PSI / 2 SCFH). Verify nitrogen is exiting the open pipe end.

Why Nitrogen Purging Matters: Heating copper in the presence of oxygen forms black copper oxide scale on the inner walls. Once the system runs, oil and refrigerant sweep this scale directly into the capillary tube or compressor, causing catastrophic blockages.

4

Apply Heat to the Joint

Ignite your torch and adjust to a neutral flame. Point the inner cone of the flame toward the female fitting socket first, moving the flame constantly in a sweeping motion around the joint. Copper draws the molten alloy toward the hottest area, so heating the socket pulls the metal into the capillary gap.

5

Apply the Brazing Rod

Once the copper glows a dull cherry red (1,200∘F / 650∘C), touch the Sil-Fos or silver rod to the top of the joint connection—not directly into the torch flame.

• If the copper is sufficiently hot, the rod will melt instantaneously on contact and flow smooth around the complete 360∘ perimeter via capillary action.
• Sweep the flame back toward the base of the socket to pull the alloy completely into the seam.

6

Cool, Clean, and Inspect

Remove the torch and allow the joint to air cool naturally for 30–60 seconds before touching. Quenching hot copper joints with cold water can shock the metal and cause microscopic thermal fractures. Once cooled, wipe the joint clean with a damp rag to remove flux residue (if flux was used).

Common Brazing Mistakes to Avoid

• Overheating the Joint: Bright cherry-red or white-hot glowing copper oxidizes the metal severely and weakens the joint wall.
• Directing Flame on the Rod: Melting the filler rod with the torch flame instead of the hot copper pipe creates cold solder joints, lumps, and surface leaks.
